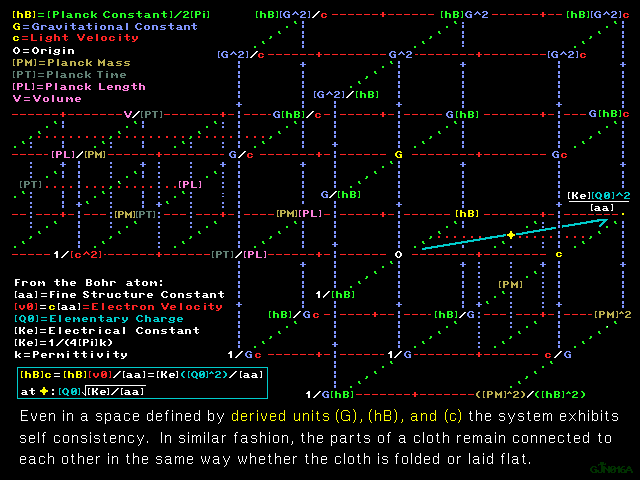

This alternative projection of the relationships among the Planck
sytem of units is particularly significant because speed of light
[c] and rationalized Planck constant [hB] are now both defined to
be exact and therefore unadjustable while the exact value of [G],
the Newtonian gravitational constant, is still under discussion.
For this reason, all quantities lying in the plane formed by [hB]
and [c], having no component parallel to [G], are thus immutable
also, and each and every quantity NOT found in that plane, having
some component that is parallel to adjustable [G], will have its
numerical value changed as the numerical value of [G] is changed.

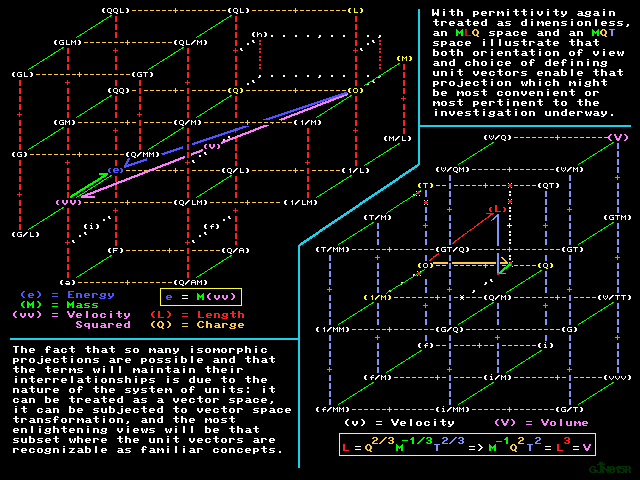

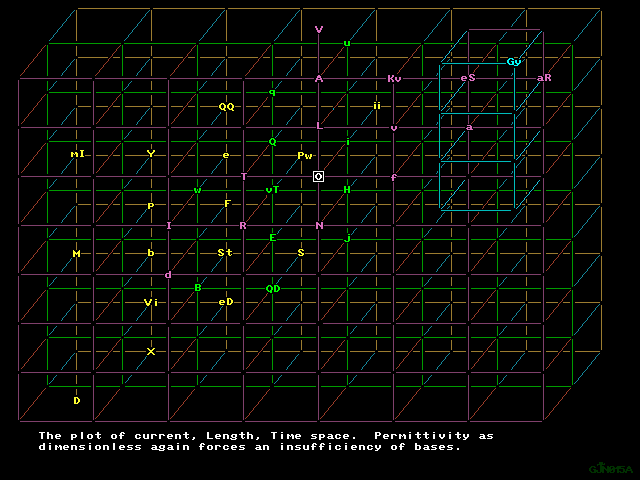

Yet more alternative perspectives, such as those seen below, offer
more verification that a set of interrelationships in a system of
units can be projected by a vector space and its transformations.
